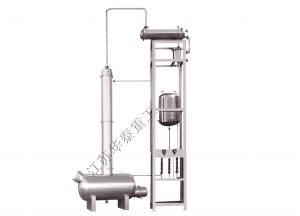

JS series high effect alcohol distilling tower
發(fā)布時間：2020/08/14 Pharmaceutical equipment Products 瀏覽次數(shù)：890
Product Name:JS series high effect alcohol distilling tower
Purpose:?This equipment adopts high efficient stainless steel corrugated fillings,all made of stainless steel in order to ensure the alcohol can’t be polluted.The tower adopts knock-down V style pipe,so it is convenient for heating ektexine and cleaning the wall wiall of the tower.The equipment adopts two styles of external and internal heating,the clients may choose it according to the pratical needs.
Main Technique Parameter：
|
Model items |
JS-200 | JS-300 | JS-400 | JS-500 | JS-600 | JS-800 |
| Volume (L) | 900 | 1100 | 1600 | 2000 | 2500 | 3200 |
| Recycle capacity（kg/h） | 45-60 | 90-100 | 150-160 | 280-300 | 420-450 | 600-630 |
| Condenser area（m2） | 4.0 | 9 | 16 | 25 | 36 | 56 |
| Condenser area（m2） | 1 | 1.6 | 3 | 3 | 3 | 4.5 |
| Recycle density | >90% | |||||
| Steam pressure（MPa） | 0.1 | |||||
| Weight（kg） | 900 | 1500 | 2350 | 3400 | 4500 | 6800 |
| Height (m) | 9.5 | 11.1 | 11.7 | 12.6 | 12.6 | 13.8 |
| Dimension (m) | 2.9×1.55 ×9.5 |
3.3×1.64 ×11.1 |
4.59×1.85 ×11.7 |
4.8×2.15 ×12.6 |
5×2.2 ×12.6 |
5.5×2.0 ×13.8 |
